Products

Industrial chimney vents clean filtered air from e-waste processing machines high above ground to protect workers and meet pollution rules. -Chimeny Height :- 100 ft. -Base Cone Pipe :- 20 Inches in 7/8mm thickness (15-18ft -one length) -Middle Pipe :- 16 Inches in 7/8mm thickness (two length -20ft each) -Upper Pipe :- 14 Inches in 5/6mm thickness (two length -20ft each) -Rope Wire :- 30 mtr. -Rope Size :- 12mm with hook -Supporting Clamp :- 6 Pcs -Rib :- 72 Pcs -Ladder at height :- 30ft from base -Template Size :- 31/41 Inches -Template Thickness :- 25mm -Ladder Radius :- 4ft Round shape NOTE:- IT CAN BE CUSTOMIZED

Automatically removes chips, capacitors & gold parts from old computer/TV circuit boards using controlled hot air Heats solder to 250°C → shakes loose components into separate bins while clean boards exit other side Processes 300 kg/hour with just 1 operator - no manual picking needed Touch screen controls set temperature/time, collects tin slag + valuable parts separately Small footprint (3x2m), 380V power, stainless steel body lasts years Boosts recycling profits by recovering 99% components intact for resale/refining -Model No. :- PT-1102A -Capacity :- 200 Kg/hr -Heating Source :- Gas -Quantity :- 1 set -Weight :- 750 Kg.Appxx -Temperature :- 100-300 Degree -Motor & Grander :- 2Hp -Flam :- Automatic -Temperature Device :- Inbuild

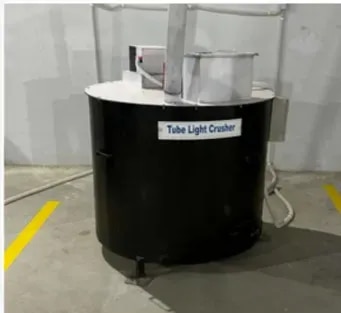

Crushes tubelights, CFLs, and fluorescent lamps safely without mercury leakage Rotating blades inside sealed chamber break glass and separate metal ends 4-stage filters (HEPA + carbon) capture 99.9% toxic phosphor powder and mercury vapor Processes 500-1000 lamps/hour (2-8 ft tubes, U-tubes, compact CFLs) Stainless steel body with 415V 3-phase motor, fits standard 55-gallon drums Automatic separation of glass cullet, metal caps, and hazardous phosphor powder Zero emission design meets pollution board standards for e-waste recycling - Model No. :- PT 401 - Feeding Capacity :- As fast as can be manually feed - Electrical/Motor :- 1/3 Hp - Pre-Filter :- Insure smooth air flow through the HEPA filter - Dacron Bag :- Covers and Protects the HEPA Filter Module - Tubelight Pipe :- 40 Inch NOTE:- IT CAN BE CUSTOMIZED

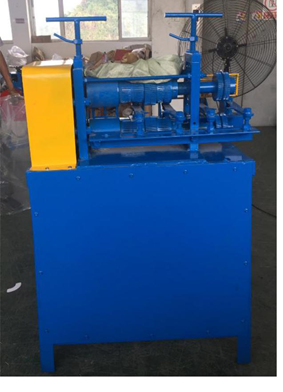

Wire Stripping Machine quickly removes plastic insulation from copper wires and cables recovered from e-waste like TVs and chargers. Feed wire into rollers → Blades cut insulation precisely → Machine pulls out clean copper core while plastic peels off automatically. -Model no. :- PT 302 -Dimention :- 760*640*920 MM Electricals Motor -Processing Rangge :- 1 sq. mm to 50 Sq. -Capacity :- 2500 Kg/day -Power :- 2.2kw -Weight :- 110 Kg NOTE:- IT CAN BE CUSTOMIZED

CRT Cutting Machine safely cuts open old TV and computer monitors (CRTs) to separate toxic lead glass from reusable panel glass and shadow mask metal. Machine uses hot wire or diamond blade to slice the frit seal after removing plastics. Built-in vacuum sucks out dangerous phosphor powder instantly. Mild steel body, 2-15 kW power, CE certified. Perfect for e-waste plants to recycle glass without pollution. -Type :- CRT Hot Wire Glass Cutting machine -Handling Capacity :- 30-4- Pcs/hr -Seperation :- CRT into Funnel and panel -Operation :- Low Power Consumtion -Table Size :- 3 x 4 ft. -Colour :- Manufacturing Standard NOTE:- IT CAN BE CUSTOMIZED

Pipeline for Dust/Fumes/Smoke sucks bad air from the dismantling table using a hood over the work area. Flexible ducts carry it to a cyclone or bag filter that traps dust particles, then activated carbon cleans fumes and smoke. Clean air exits through a tall chimney (3m+), keeping workshop safe and meeting pollution rules. PIPE LIINE FOR DUST/FUMES/SMOKE TO JOINT ALL DISMANTLING TABLES TO SCRUBBER -Pipe Size :- 8 Inches & 6 Inches -OD(Outer Diameter) with reducer -Pipe Thickness- :- 2.5/3/4 mm -Pipe type :-MS -Pipe Shape :- Round -Colour :- Manufacture Standared NOTE:- IT CAN BE CUSTOMIZED

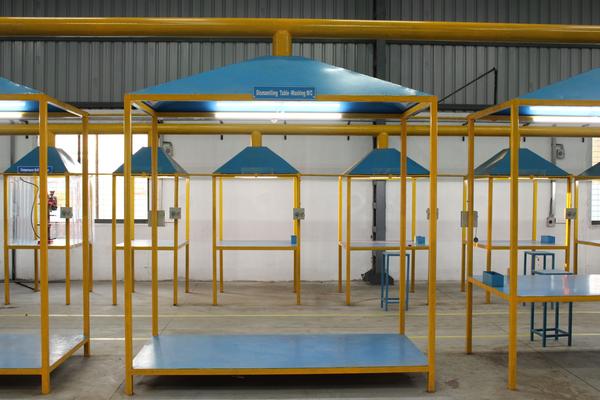

Dismantling table is a sturdy sloped workbench built to safely dismelt TVs, fridges, and appliances into reusable parts like metals, plastics, and wires. Dismantling table's job is to safely break down electronic items like TVs and fridges and separate their parts. Its sloped stainless steel top drains water-oil into trays, while the dust suction machine keeps the air clean. Drawers store screws and wires, and tool holders make cutting and dismantling easy. It's best for extracting metals and plastics in recycling plants. USE FOR:-Ideal for recycling electronics or machinery, they enable safe separation of metals, plastics, and circuits without cross-contamination. Custom sizing ensures adaptability to various workflows. HANDLE PROCESSING CAPACITY:- From 100 kg to 5 tons per hour for e-waste or components, depending on model size and automation. WEIGHT-BEARING LOAD CAPACITY RANGE :- 800-1000 kg Dismantling Table for IT Goods Size 4 x 4 Dismantling Table for CEEW Goods Size 4 x 6 Dismantling Table for CEEW Goods Size 4 x 8 (Ref line) MATERIAL :- MILD STEEL (MS- SHEET ) FRAMES WITH FINISH AND STAINLESS STEEL WORKTOP. NOTE:- IT CAN BE CUSTOMIZED

E-waste shredders efficiently process electronic scrap like AC, Window AC, Refrigerator, Fridge and appliances to enable material recovery and recycling. Industrial e-waste shredders deliver reliable performance in real recycling operations, processing tough electronics for material recovery and compliance. USE FOR:- WITHIN THE RECYCLING LINES OF REFRIGERATORS. CAPACITY:- 300-400KG/HR. (40KG WEIGHT-1 FRIDGE). MATERIAL :- HEDP LEDP PP PE PCB, WIRE RADIATOR ETC. BLADE GRADE:- EN 24 CUTTING SIZE:- 34“X28” ELECTRICITY LOAD:- 15KW NOTE:- IT CAN BE CUSTOMIZED

USE FOR:- CUTTING METAL MATERIALS LIKE STEEL,SS,AL,AND CU. MODEL NO.:- PT-PLS-600 DIMENSION:- 6.5FT. (L) X 3FT. (8) X 6FT.(H) DRILL MACHINE:- INBUILT (FIXED) TANK CAPACITY:- 160 LTR. MATERIAL:- MS SHEET PLASMA CABINET NOTE:- IT CAN BE CUSTOMIZED

The PCB E-Waste Recycling Plant is equipped with advanced machinery and technologies to disassemble, segregate, and process e-waste, particularly PCBs. The plant works by first collecting the e-waste, then shredding and sorting the materials based on their types and components. The process involves mechanical and chemical treatments to separate metals like copper, gold, silver, and platinum from plastics, glass, and other waste materials.

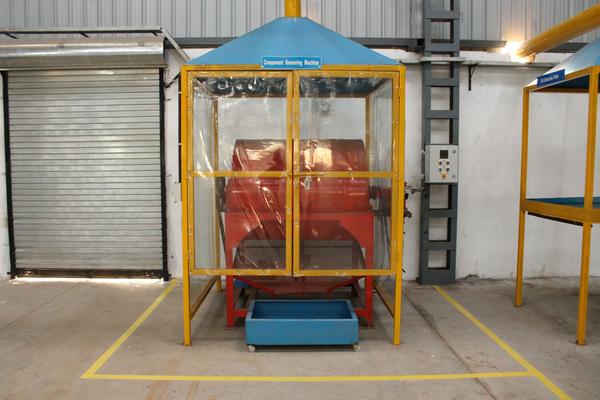

Component Removing E Waste Recycling Plant Capacity 100 kg/hr Power Consumption 2 Kw Type Component Remover On PCB Board Frequency 50Hz Automation Grade Fully Automatic Voltage 240 V A Component Removing Machine is a key part of an e-waste recycling plant, designed to safely and efficiently detach electronic components from printed circuit boards (PCBs). Using controlled heat or mechanical methods, it separates valuable parts like capacitors, ICs, and resistors, preparing them for further recovery or recycling. This process reduces manual labor, improves precision, and ensures the safe handling of hazardous materials. Ideal for recycling operations, the machine enhances throughput and material recovery rates while minimizing environmental impact. It's essential for pre-processing in the e-waste recycling chain, enabling clean, efficient dismantling before shredding, sorting, or refining stages.
